| Section : POWER |

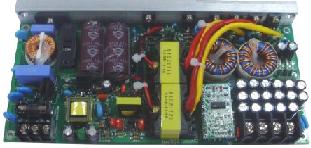

| Product Name : EPA-1004(AC-DC) |
| Maker : MS SELTEK |
|
|
 |
 |
INPUT
VOLTAGE : AC 110V / AC 220V
INRUSH CURRENT : 25A Max.
EFFICIENCY : 80% Typical
OUTPUT
OUTPUT : DC 5V 40A
ADJUSTABLE VOLTAGE RANGE : ±15%
LINE REGULATION : ±1%
LOAD REGULATION : ±1% ( 10 ~ 100% LOAD CHANGE )
RIPPLE AND NOISE : Max. 1% of Rated output voltage.
PROTECTION
OVER CURRENT PROTECTION : 110% ~ 120% of Imax.
OVER VOLTAGE PROTECTION : 115% ~ 130% of Vout
OVER TEMPERATURE PROTECTION : 75℃ AUTO RESET
DIMENSION
215 X 104 X 20
(L X W X H)㎜
|
 |
|
|
|
